Specificatii Tehnice

Model	8CH Dual-fiber Mux/Demux	16CH Dual-fiber Mux/Demux	32CH Dual-fiber Mux/Demux	40CH Dual-fiber Mux/Demux

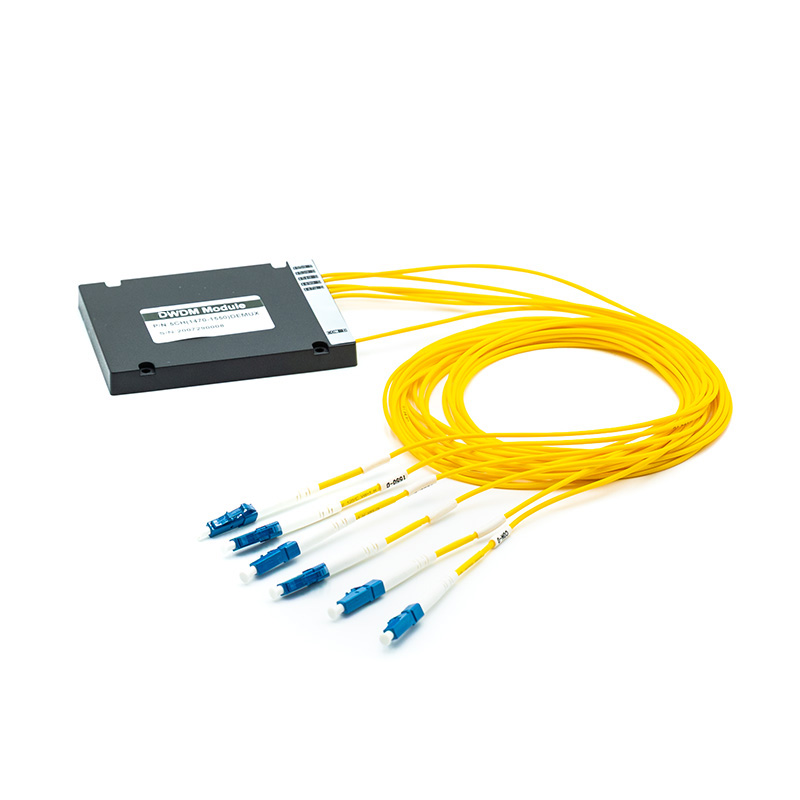

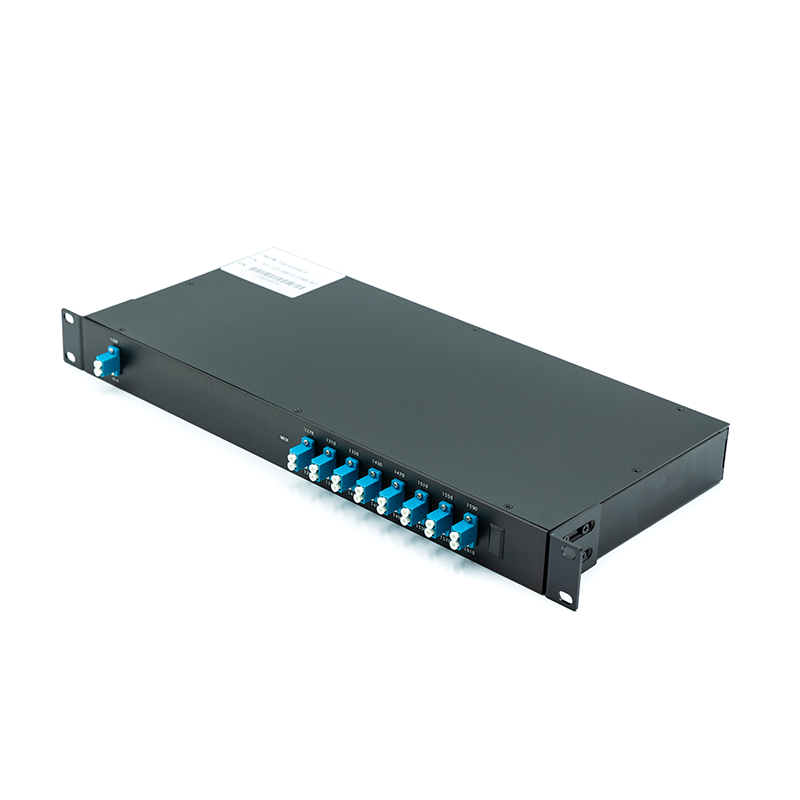

Forma	19” Inch 1U Rack Modul ABS Pigtails
Lungimi de unda (ITU Grid)	C15-C61 se poate personaliza pe canalele dorite
Porturi suplimentare disponibile	Expansion Port 1310nm Port Monitor Port
Banda de trecere a canalului	±0.11nm	±0.11nm	±0.11nm	>0.22 nm
Pierderi la insertie	≤ 2.4dB	≤ 4dB	≤ 3.5dB	≥40dB
Pierderi la retur	≥ 45dB	≥ 45dB	≥ 40dB	≥ 40dB
Polarization Mode Dispersion	≤ 0.1ps	≤ 0.1ps	≤ 0.1ps	≤0.5ps
Izolarea canalului (Channel Isolation)	Adjacent ≥30dB Non-adjacent ≥ 45dB	Adjacent ≥30dB Non-adjacent ≥ 45dB	Adjacent ≥25dB Non-adjacent ≥ 29dB	Adjacent ≥25dB Non-adjacent ≥ 29dB
Spatierea Canalului	100GHz (0.8nm)	100GHz (0.8nm)	100GHz (0.8nm)	100GHz (0.8nm) 50Ghz(0.4nm)
Tehnologie	TFF (Thin Film Filter)	TFF (Thin Film Filter)	AAWG (Gaussian)	AAWG (Gaussian)
Precizia lungimii de unda centrale	±0.05nm	±0.05nm	±0.05nm	±0.05nm
Puterea Optica Max.	≤ 300mW (24.77dBm）	≤ 300mW (24.77dBm）	≤ 300mW (24.77dBm）	≤300mW (24.77dBm）
Directivitatea	≥ 45dB	≥ 45dB	≥ 40dB	≥40dB
PDL	≤ 0.3dB	≤ 0.3dB	≤ 0.3dB	≤0.7dB
Temperatura	Operare: -5°C – 70°C Depozitare: -40°C – 85°C

Detalii comanda

Part. No	Descriere	Conector	Port Suplimentar (la comanda)
DWDM-M/D-8CH	MUX/DEMUX DWDM 8CH Dual Fiber	LC/UPC	Expansion Port / Monitor Port / 1310nm Port
DWDM-M/D-16CH	MUX/DEMUX DWDM 16CH Dual Fiber
DWDM-M/D-32CH	MUX/DEMUX DWDM 32CH Dual Fiber
DWDM-M/D-40CH	MUX/DEMUX DWDM 40CH Dual Fiber

Extinderea retelelor de telecomunicatii: Transporta multiple fluxuri de date pe aceeasi fibra optica, economisind infrastructura.
Retele metropolitane (MAN): Imbunatatesc capacitatea retelelor de internet si date in orase.
Centre de date: Conecteaza centre de date pe distante mari cu latime de banda mare.
Retele de acces (FTTx): Suporta servicii de internet de mare viteza pentru utilizatori finali.
Retele mobile (backhaul): Transporta trafic de date intre statiile de baza si centrele de control.
Retele de stocare (SAN): Conecteaza sisteme de stocare pentru transfer rapid de date.
Transmisii video: Transporta semnale video de inalta rezolutie pentru televiziune si broadcasting.
Aplicatii guvernamentale si militare: Asigura comunicatii sigure si de mare capacitate.
IoT: Transporta date de la dispozitive IoT la centre de date.
Upgradarea retelelor existente: Permite adaugarea de canale suplimentare pe aceeasi fibra, extinzand capacitatea.
